About the driver for keeper assembly
The MAGFIT IP keeper can be tightened with a driver made by the implant manufacturers described below.
| Manufacturer | Supported driver |
|---|---|
| Astra Tech | Hex driver 0.05inch |
| Endopore | Hex driver 0.05inch |
| Calcitek | Hex driver 0.05inch |
| Platon | Hex driver SS,S,L |
| SwissPlus / Screw-Vent | Hex driver 1.25mm |
Hex driver for MAGFIT IP
A driver with the JIS1.3mm hexagonal tip is required for tightening the MAGFIT IP keeper.
Be sure to tighten the keeper to the recommended torque for use.

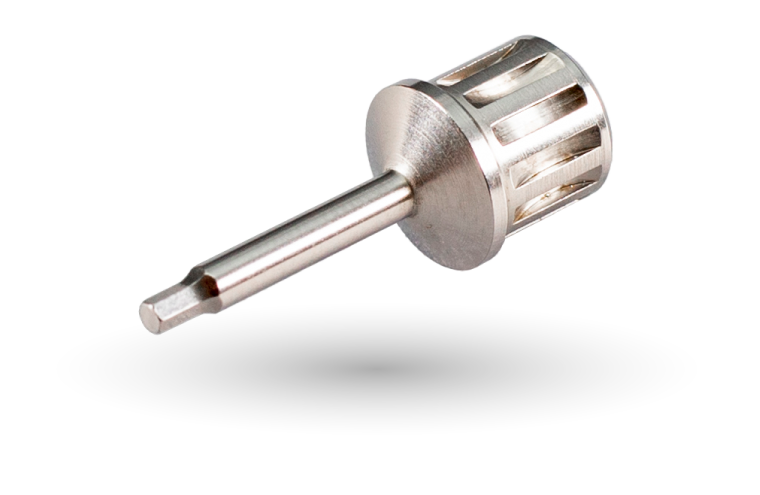

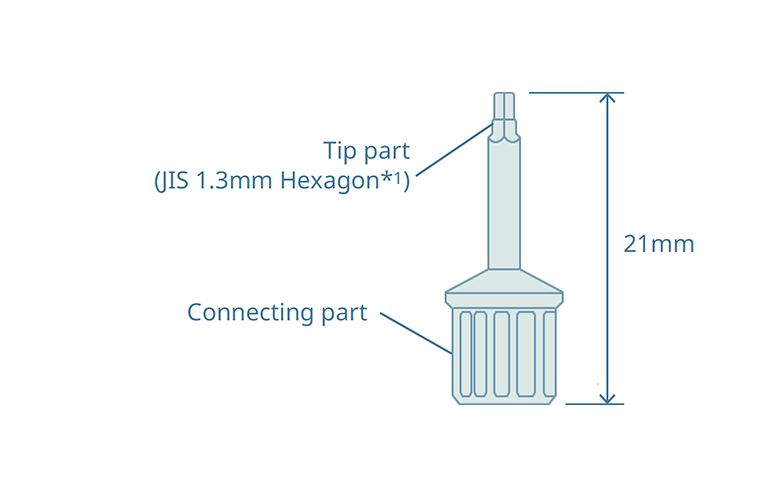

For temporary tightening (1.3HDI)
-
-
*1 Equivalent to a hex driver 0.05inch

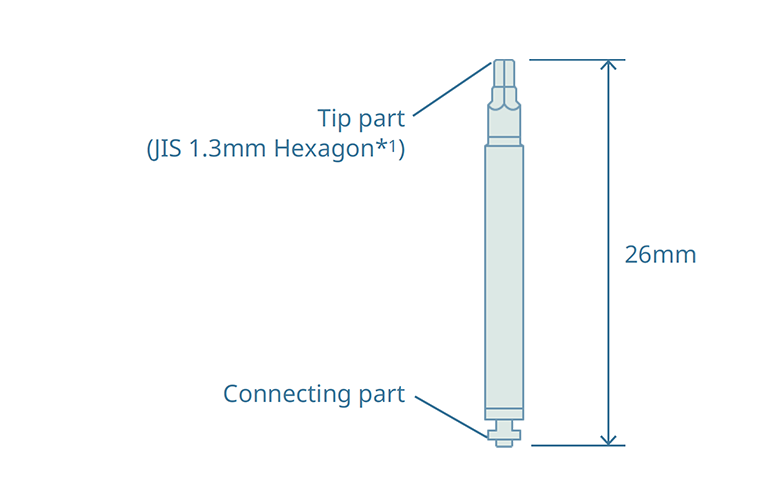

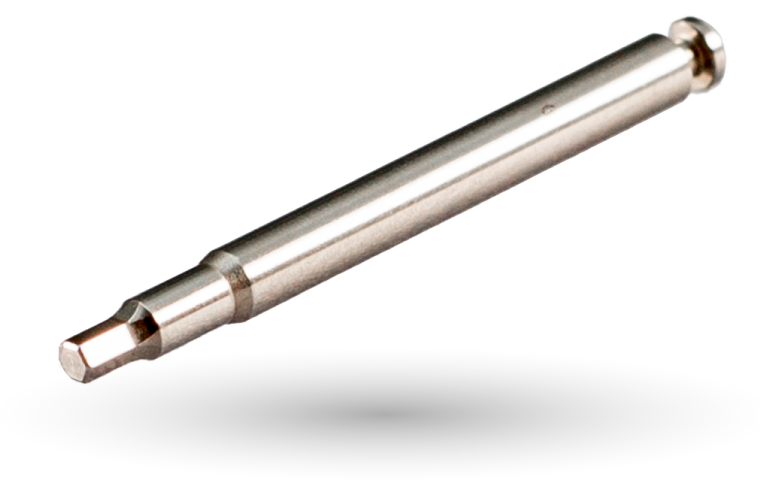

For torque controllers (1.3HDI)
Torque wrench for ITI implants (No.046,119)
-
-
*1 Equivalent to a hex driver 0.05inch

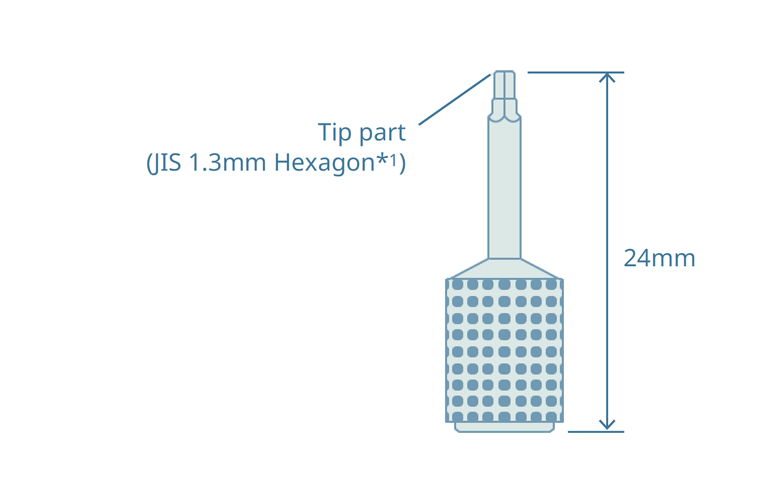

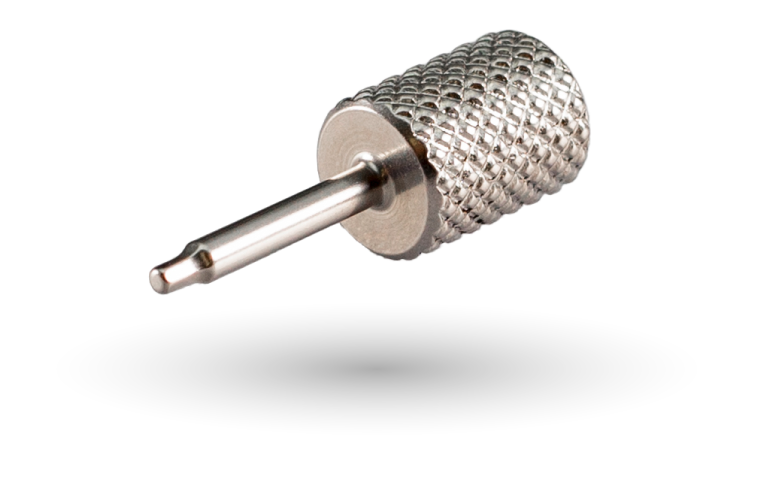

For torque controllers 1.3MDB
- Torque wrench for the Branemark system (Nobel Biocare)
- Contra-angle/torque driver for 3i implant system (No.CATDB)
- Hand torque driver for the POI system (can be connected to other general hand pieces)
-
-
*1 Equivalent to a hex driver 0.05inch
医療機器届出番号
| IPドライバ | 23B1X10004000002 |
|---|
