Round bars
| Supported standards | JIS G 4303 Stainless steel bars |
|---|---|
| Type of steel | JIS standards and AICHI standards |
Features
Product dimensions
| Specifications (finish) | Range of dimensions |
|---|---|
| Peeling finish | φ10mm to 400mm |
| Acid bath finish | φ10mm to 80mm |
- Some sizes cannot be manufactured depending on type of steel.
Product specifications
Dimensional tolerance (Peeling finish)(unit: mm)
| Diameter | Dimensional tolerance |
|---|---|
| Up to 15 | +0.15 −0 |
| over 15 under 25 | +0.15 −0 |
| over 25 under 80 | +0.25 −0 |
| over 80 under 125 | +0.50 −0 |
| over 125 under 150 | +1.0 −0 |
| over 150 under 400 | +2.0 −0 |
Dimensional tolerance (acid bath finish)(unit: mm)
| Diameter | Dimensional tolerance | Eccentricity or deviation |
|---|---|---|
| Up to 15 | ±0.3 | 75% or less of the range of dimensional tolerance |
| over 15 under 25 | ±0.4 | |
| over 25 under 35 | ±0.5 | |
| over 35 under 50 | ±0.6 | |
| over 50 under 80 | ±0.8 | |
| over 80 under 100 | ±1.0 | |
| over 100 under 120 | ±1.3 | |
| over 120 under 160 | ±1.6 | |
| over 160 under 200 | ±2.0 | |
| Exceeding 200 | ±1.2% |
Other
| Category | Dimensional tolerance |
|---|---|
| Bending | 3 mm or less per meter, total less than 3 (mm/m) × total length (meters) or less |
| Length | 3 to 6m |
| Length tolerance | +40mm, −0mm |
Type of steel
| Standards | Manufactured type of steel |
|---|---|
| JIS standards | Conforming to JIS G 4303 |
| AICHI standards | Refer to the product catalog (Stainless steel) and the table below |
Major brand steel types of AICHI specification
| Category | Name of type of steel | Major components and characteristics |
|---|---|---|
| Martensite | AUS403H | 12Cr-0.03C Improved cold processing characteristics based on SUS403 |
| AUJ440C | 13Cr-0.6C Stainless steel for bearings have strength equal to SUS440C and corrosion resistance |
|
| AUS6M | 13Cr-0.6C-Mo-V Improved hardness, abrasion resistance and tempering resistance |
|
| AUS8 | 13Cr-0.8C-Mo-V Improved hardness, abrasion resistance and tempering resistance |
|
| ACUTO440 | 17Cr-0.8C-1Mo-V Achieves both sharpness as a blade and high corrosion resistance |
|
| Austenite | AUS304ST | 18Cr-8Ni-0.2N-0.02C-Nb High strength from controlled rolling with SUS304N2 base |
| SUS304K1 | 19Cr-9.3Ni-0.8Cu-0.07N Satisfies non-magnetism after drawing with SUS304 base |
|
| SUS304KM | 19Cr-9Ni-0.5Cu-0.08N Satisfies non-magnetism after drawing with SUS304 base |
|
| AUS205 | 17Cr-14Mn-0.8Ni-0.35N Excellent machining hardness from cold processing and satisfies non-magnetism after treatment |
|
| AUT-1 | 17Cr-12Ni-5Mn-4Si-N Austenitic stainless steel for sliding components with excellent seizure prevention |
|
| Hardened deposition | TXA208 | 16Cr-7Ni-1.2Mo-1.8Cu-Nb Achieves corrosion resistance, high strength and high toughness with SUS630 base |
Applications
| Application | Construction of the new AICHI STEEL main building |
|---|---|
| Field | Building construction |
| Shape | Channel bar, Angle bar, Round bar, Compression bar, Flat bar |
| Type of steel | SUS304A |
| Reason | design characteristics |
| Application | Truss girder |
|---|---|
| Field | Building construction |
| Shape | Round bars |
| Type of steel | SUS304A |
| Reason | Corrosion resistance |
| Application | Furukawa underground reservoir ventilation duct support fittings |
|---|---|
| Field | Civil engineering |
| Shape | H-beam, Flat bar, Round bar, etc. |
| Type of steel | SUS304 |
| Reason | Corrosion resistance |
| Application | Boat shafts propeller shafts |
|---|---|
| Field | Shipbuilding |
| Shape | Round bars |
| Type of steel | TXA208 |
| Reason | Corrosion resistance, high strength, high toughness |
| Application | Toyota fuel cell vehicle: MIRAI High pressure hydrogen components |
|---|---|
| Field | Fuel cell vehicle & Hydrogen station |
| Shape | Round bars |
| Type of steel | AUS316L-H2 |
| Reason | High-pressure resistance circulation stiffening characteristics |

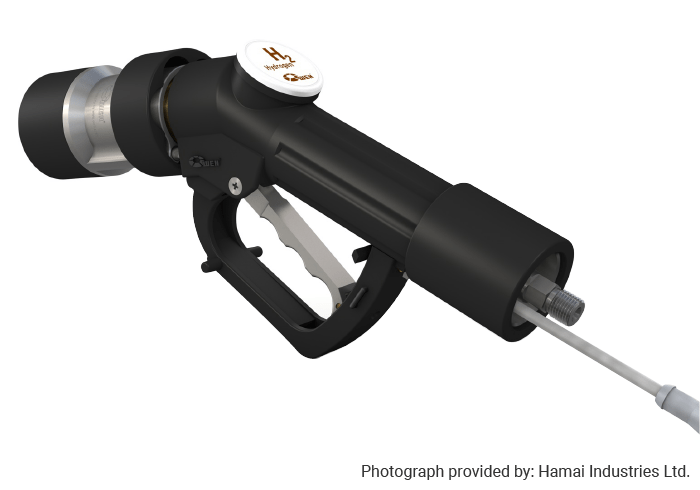

| Application | Hydrogen station devices Filling nozzle |
|---|---|
| Field | Fuel cell vehicle & Hydrogen station |
| Shape | Round bars |
| Type of steel | AUS316L-H2 |
| Reason | High-pressure resistance circulation stiffening characteristics |

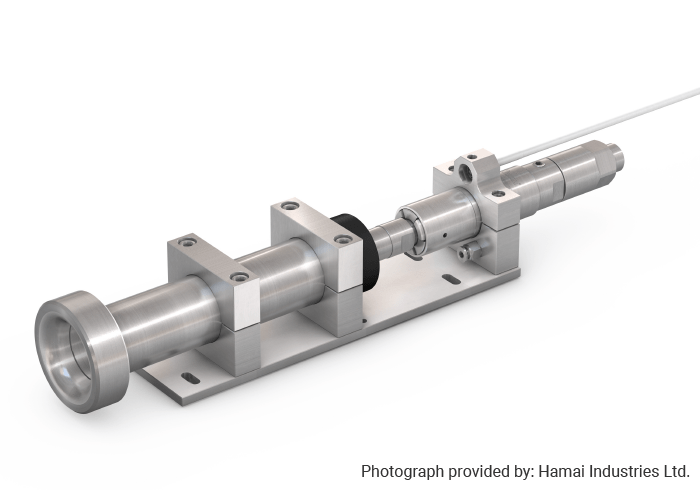

| Application | Hydrogen stations emergency withdrawal coupler |
|---|---|
| Field | Fuel cell vehicle & Hydrogen station |
| Shape | Round bars |
| Type of steel | AUS316L-H2 |
| Reason | High-pressure resistance circulation stiffening characteristics |

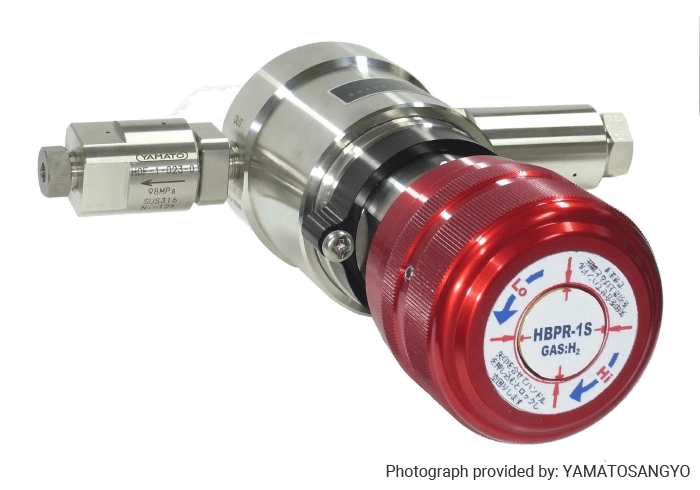

| Application | Ultra-high pressure back pressure valve |
|---|---|
| Field | Fuel cell vehicle & Hydrogen station |
| Shape | Round bars |
| Type of steel | AUS316L-H2 |
| Reason | High-pressure resistance circulation stiffening characteristics |

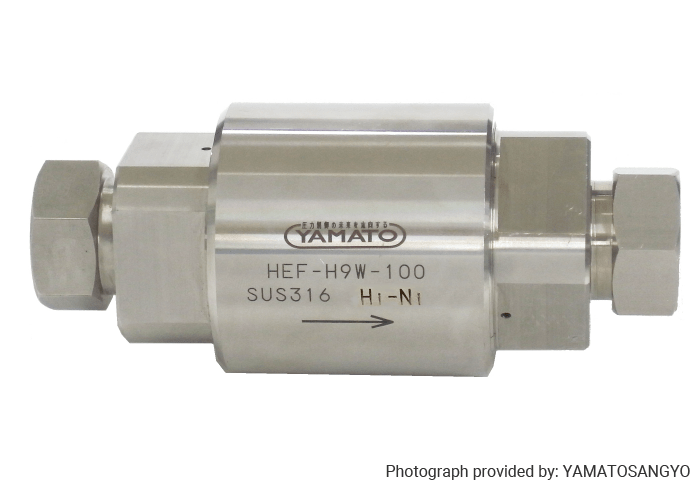

| Application | Hydrogen station overflow check valves |
|---|---|
| Field | Fuel cell vehicle & Hydrogen station |
| Shape | Round bars |
| Type of steel | AUS316L-H2 |
| Reason | High-pressure resistance circulation stiffening characteristics |

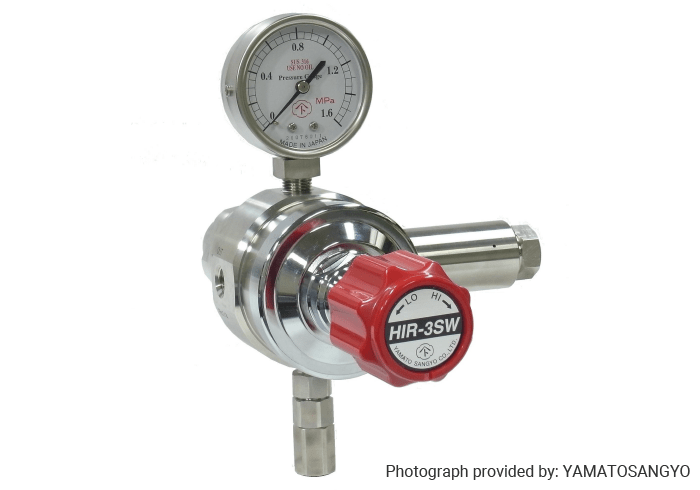

| Application | Hydrogen station pressure reduction valve |
|---|---|
| Field | Fuel cell vehicle & Hydrogen station |
| Shape | Round bars |
| Type of steel | AUS316L-H2 |
| Reason | High-pressure resistance circulation stiffening characteristics |

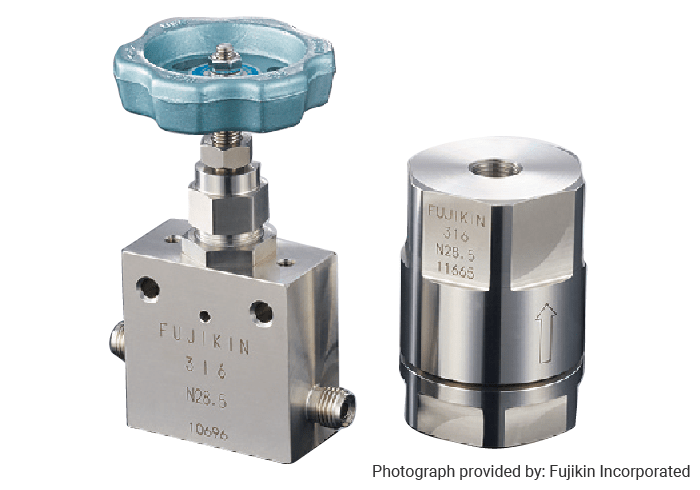

| Application | High pressure hydrogen manual valves/check valves |
|---|---|
| Field | Fuel cell vehicle & Hydrogen station |
| Shape | Round bars |
| Type of steel | AUS316L-H2 |
| Reason | High-pressure resistance circulation stiffening characteristics |
