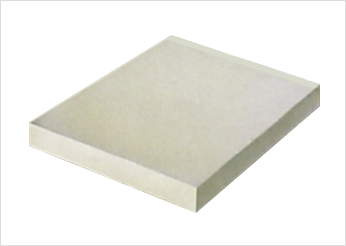

Steel plates for water sluices "AUS304-ST"
| Supported standards | - |
|---|---|
| Type of steel | AUS304ST |
Features
- These plates improve on the strength of SUS304N2 with a custom manufacturing method and are optimal for stainless steel plates for water sluices, etc.
- You can select the hardness depending on your needs.
- Corrosion resistance is equal to or exceeds that of SUS304 in corrosive environments.
- Welding is approximately equivalent to SUS304.
- Since development in 1985, we have achieved a high level of long lasting popularity with installations in water sluices all over the country.
| Type of steel | Hardness (HB) | |
|---|---|---|
| AUS304ST | A | 185 to 250 |
| B | 220 to 270 | |
| C | 250 to 300 | |
| D | 270 or more | |
Structure
A favorable step structure. The crystal granularity is extremely small contributing to improved hardness.
Chemical composition
(%)
| Type of steel | C | Si | Mn | P | S | Ni | Cr | N | Nb |
|---|---|---|---|---|---|---|---|---|---|
| AUS304ST | 0.03 or less |
1.00 or less |
2.50 or less |
0.040 or less |
0.030 or less |
7.50 to 10.50 |
18.00 to 20.00 |
0.15 to 0.30 |
0.20 or less |
| AUS304N2 | 0.08 or less |
〃 | 〃 | 0.045 or less |
〃 | 〃 | 〃 | 〃 | 0.15 or less |
Range of manufacturable sizes
-
- Steel type A, B, C are the whole range
- D steel thickness is 35mm or less
- Some specifications may not be produced. Please consult with us.
- Contact our sales people for production of items outside of the given manufacturing range.
Product specifications
| Dimensional tolerance | Bending | Length | Length tolerance |
|---|---|---|---|
| Width ±2.5mm Thickness ±0.5mm |
4mm / full length or less | 3 to 7m | +40mm, −0mm |
Various characteristics (Reference)
1. Mechanical properties (example)
| Type of steel | Hardness （HB） |
Stress (N/mm2) |
Tensile strength (N/mm2) |
Elongation (％) |
Impact value (J/cm2) |
|
|---|---|---|---|---|---|---|
| AUS304ST | A | 220 | 510 | 765 | 42 | 333 |
| B | 245 | 637 | 804 | 38 | 343 | |
| C | 270 | 686 | 863 | 35 | 294 | |
| D | 290 | 902 | 951 | 31 | 206 | |
| SUS304N2 | 210 | 441 | 755 | 63 | 353 | |
| SUS304 | 160 | 245 | 657 | 65 | 353 | |
| SUS329J1 | 220 | 549 | 765 | 28 | 118 | |
| 13Cr steel (quenched) | 300 | 785 | 1089 | 14 | 49 | |
- The above values are an example and are not guaranteed.
Contact our sales people for desired values.
2. Corrosion resistance, welding resistance, cutting properties, elasticity
| Type of steel | Saltwater resistance | Welding properties |
Machinability | Elasticity | |
|---|---|---|---|---|---|
| Base materials | Welded part | ||||
| AUS304ST (A・B・C・D) | 〇 | 〇 | 〇 | △ | 〇 |
| SUS304N2 | 〇 | △ | 〇 | △ | 〇 |
| SUS304 | 〇 | △ | 〇 | 〇 | 〇 |
| SUS329J1 | ◎ | ◎ | 〇 | △ | 〇 |
| 13Cr steel (quenched) | × | × | △ | × | × |
◎ Very good 〇 Good △ Somewhat poor × Poor
